• Tires, P225/65R17 all-season, blackwall (Included and only available with (PFF) 17" (43.2 cm) painted aluminum wheels.)
• Tire, compact spare with steel wheel
• Luggage rack side rails, roof-mounted, Charcoal
• Bumpers, front and rear body-color with Charcoal lowers
• Moldings, Charcoal lower rocker

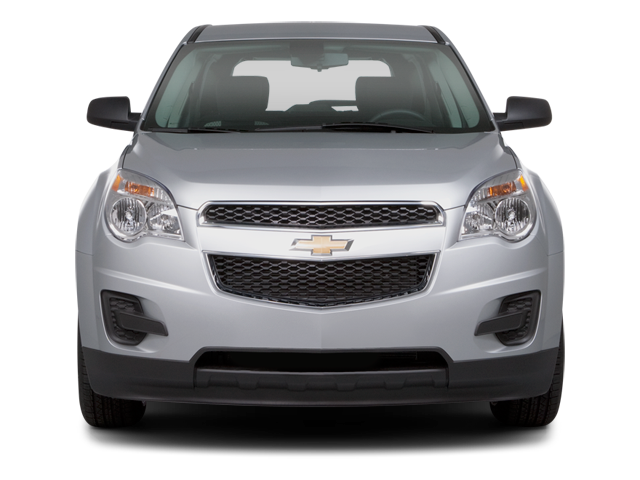

• Grille, Charcoal with chrome surround
• Headlamps, halogen composite with automatic exterior lamp control
• Glass, deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Mirrors, outside heated power-adjustable, body-color
• Wipers, front variable-speed, intermittent with washer.
• Wiper, rear variable-speed, intermittent with washer

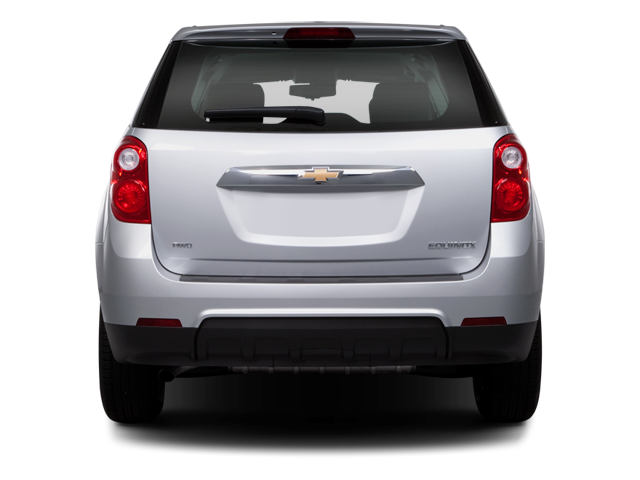

• Liftgate, rear manual with fixed glass
• Door handles, body-color

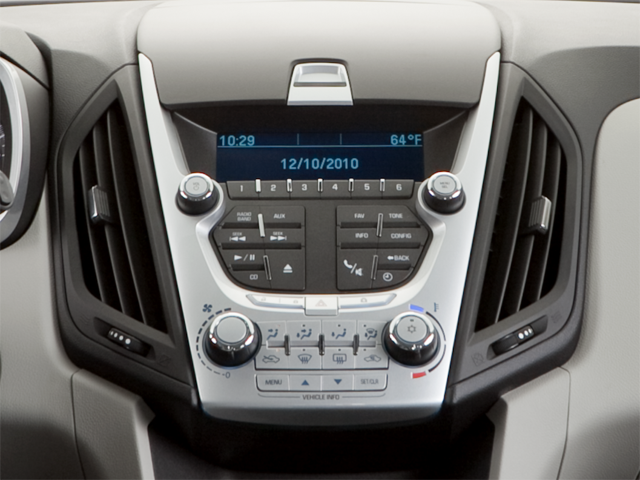

• Audio system, AM/FM/XM stereo with CD player and MP3/WMA playback capability, Graphic Interface Display (GID), Radio Data System (RDS), speed-compensated volume, auxiliary input jack and outside temperature display
• Audio system feature, 80-watt 6-speaker system mid-range speakers in each door and tweeters in the A-pillars.
• Audio system feature, auxiliary input jack
• XM Radio XM Radio is standard on more than 50 2010 GM models, including three trial months of service. XM turns your world on with commercial-free music channels for virtually every music genre, all in amazing digital quality sound. Turn on your favorite sports, the biggest names in News, Talk and Comedy, family programming, exclusive concerts and original music series, wherever you go from coast to coast. Everything worth listening to is now on XM (XM service available only in the 48 contiguous United States and the District of Columbia. XM Radio subscription required and sold separately after trial period. Fees, taxes, and a one-time re-activation fee, may apply. Subscriptions governed by XM Customer Agreement available at xmradio.com. All fees and programming subject to change. Family programming Packages are available.)
• Antenna, roof-mounted

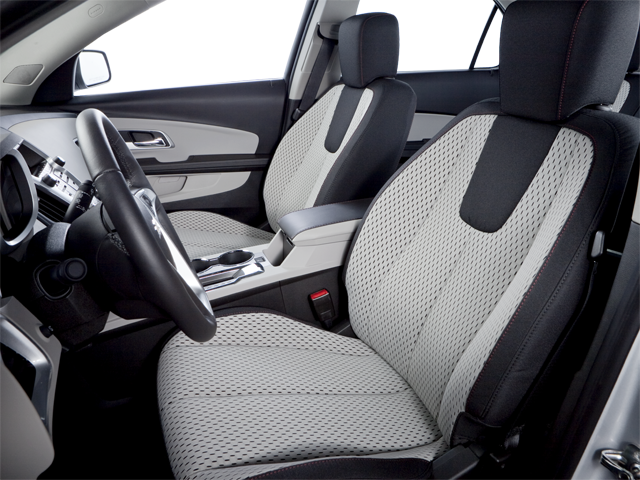

• Seats, Deluxe front bucket
• LT Interior, Premium Cloth
• Seat adjuster front, driver 2-way fore/aft power lumbar and power 2-way height adjuster

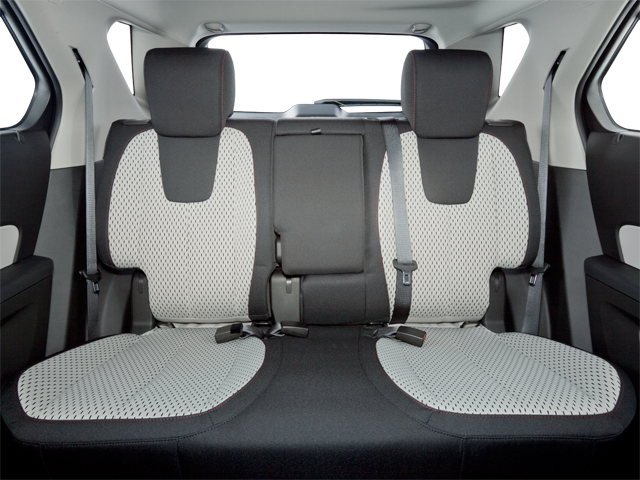

• Seat adjuster rear, 2-way fore/aft adjustment with 60/40 split seatback and 3-way recline
• Console, center with armrest and concealed storage
• Armrest, rear center with dual cup holders
• Floor mats, carpeted first and second row

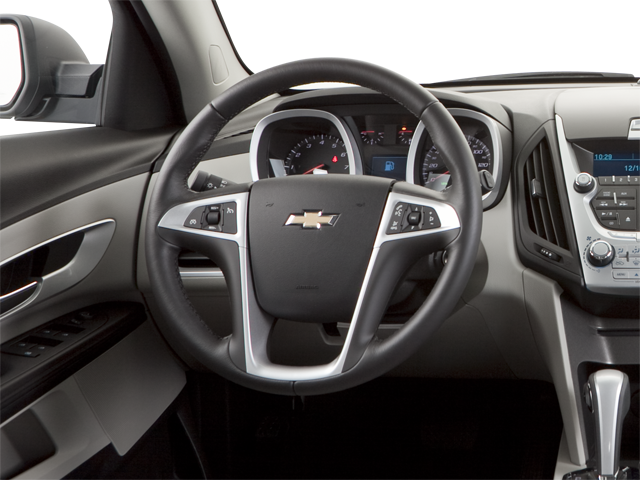

• Steering wheel, comfort grip vinyl with integrated cruise controls
• Steering column, tilt and telescopic
• Driver Information Center monitors 26 various systems including, Vehicle Information Menu (oil life, tire pressure, standard/metric units) and Trip Information Menu (trip 1, trip 2, fuel range, average fuel economy, instant fuel economy, average vehicle speed) (Includes compass display.)
• Compass display included in Driver Information Center (DIC) (Not available with (UE0) OnStar delete.)

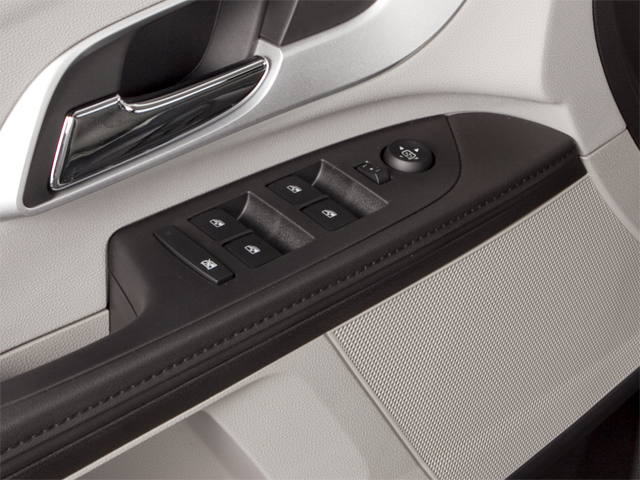

• Windows, power with Express-Down on all 4 doors
• Door locks, power programmable with power lockout protection
• Remote Keyless Entry with 2 transmitters, panic button, content theft alarm activation verification and illuminated entry
• Cruise control, electronic with set and resume speed
• Air conditioning, single-zone manual climate control
• Defogger, rear-window electric
• Cupholders, 2 front in center console and 2 rear in center armrest with 1 bottle holder in each door
• Power outlets, 4 auxiliary with covers, 12-volt includes 1 front of console, 1 in console, 1 in back of console and 1 in cargo area. (Additional power outlets in front center console.)
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handles, front passenger and rear outboards
• Map pocket, front seatback, driver and front passenger
• Lighting, interior with theatre dimming, center-mounted dome, rear cargo area, dual front map lights, ambient lighting on center stack surround, and center console cupholders (Includes ambient lighting on instrument panel and center console.)
• Lighting, dual front map lights

• Brakes, brake assist
• Brakes, Hill Start-Assist (HAS)
• Traction control
• StabiliTrak, electronic stability control system
• Daytime Running Lamps
• Air bags, dual-stage, frontal, driver and right front passenger with passenger sensing system, Thorax side-impact, seat mounted, driver and right front passenger, head curtain, side front and rear outboard seating positions (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Air bag Passenger Sensing System, sensor indicator inflatable restraint, front passenger/child presence detector (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance featuring Stolen Vehicle Slowdown, Remote Door Unlock, Roadside Assistance, Remote Horn and Lights, Hands Free Calling, OnStar Vehicle Diagnostics, and Low Mileage Discount (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Vehicle Diagnostics capabilities vary by model. Remote door unlock success varies with conditions. Ability to locate stolen vehicles varies with conditions. Subscription Service Agreement required. Call 1-888-4ONSTAR (1-888-466-7827) or visit onstar.com for OnStar's Terms and Conditions, Privacy Policy and details and system limitations.)
• Safety belts 3-point, driver and right-front passenger, height-adjustable includes pretensioners
• Safety belts, 3-point, rear, all seating positions
• Door locks, power operated rear child security
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Tire Pressure Monitor System (Does not monitor spare.)

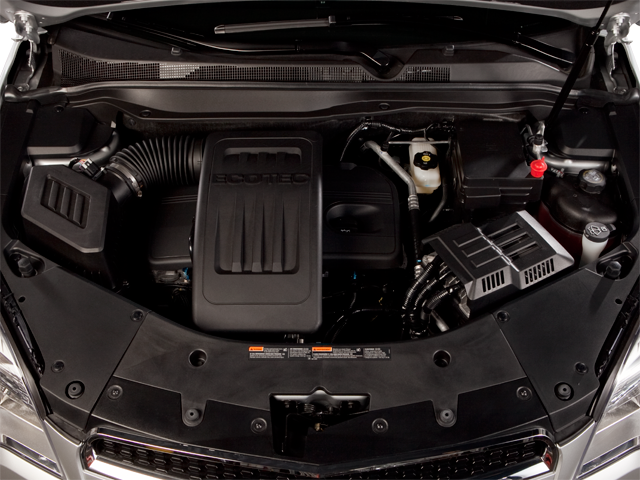

ENGINE, 2.4L DOHC, 4-CYLINDER SIDI (SPARK IGNITION DIRECT INJECTION)

with VVT (Variable Valve Timing) (182 hp @ 6700 rpm 172 lb-ft @ 4900 rpm) (STD)

• Engine
• 2.4L DOHC
• 4-cylinder SIDI (Spark Ignition Direct Injection) with VVT (Variable Valve Timing) (182 hp @ 6700 rpm
• 172 lb-ft @ 4900 rpm) (Not available with (Q6D) 18" (45.7 cm) machined aluminum wheels.)
• Alternator
• 120 amps
• Axle
• 3.53 final drive ratio (Requires all-wheel drive vehicles and (LAF) 2.4L DOHC 4-cylinder SIDI engine.)
• Drivetrain
• all-wheel drive (1LK26 model only.)
• Battery
• maintenance free with rundown protection
• 525 CCA
• GVWR
• 5070 lbs (2300 kg) (Requires all-wheel drive vehicles and (LAF) 2.4L DOHC 4-cylinder SIDI engine.)
• Suspension
• front independent MacPherson strut with stabilizer bar
• optimally-tuned shocks and hydraulic-ride bushings in front control arms
• Suspension
• rear independent mult-link with hydraulic rear trailering arm links and stabilizer bar
• Suspension
• Refined Ride
• Brakes
• 4-wheel antilock
• 4-wheel disc
• Exhaust
• single
• Tire
• compact spare with steel wheel
• Luggage rack side rails
• roof-mounted
• Charcoal
• Bumpers
• front and rear body-color with Charcoal lowers
• Moldings
• Charcoal lower rocker
• Grille
• Charcoal with chrome surround
• Headlamps
• halogen composite with automatic exterior lamp control
• Glass
• deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Mirrors
• outside heated power-adjustable
• body-color
• Wipers
• front variable-speed
• intermittent with washer.
• Wiper
• rear variable-speed
• intermittent with washer
• Liftgate
• rear manual with fixed glass
• Door handles
• body-color
• Audio system feature
• 80-watt 6-speaker system mid-range speakers in each door and tweeters in the A-pillars.
• Antenna
• roof-mounted
• Seat adjuster rear
• 2-way fore/aft adjustment with 60/40 split seatback and 3-way recline
• Console
• center with armrest and concealed storage
• Armrest
• rear center with dual cup holders
• Steering column
• tilt and telescopic
• Instrumentation includes speedometer
• single trip odometer
• fuel level
• engine temperature and tachometer
• Compass display included in Driver Information Center (DIC) (Not available with (UE0) OnStar delete.)
• Windows
• power with Express-Down on all 4 doors
• Air conditioning
• single-zone manual climate control
• Defogger
• rear-window electric
• Cupholders
• 2 front in center console and 2 rear in center armrest with 1 bottle holder in each door
• Power outlets
• 4 auxiliary with covers
• 12-volt includes 1 front of console
• 1 in console
• 1 in back of console and 1 in cargo area. (Additional power outlets in front center console.)
• Mirror
• inside rearview manual day/night
• Visors
• driver and front passenger illuminated vanity mirrors
• Assist handles
• front passenger and rear outboards
• Map pocket
• front seatback
• driver and front passenger
• Brakes
• brake assist
• Brakes
• Hill Start-Assist (HAS)
• Daytime running lamps
• Safety belts 3-point
• driver and right-front passenger
• height-adjustable includes pretensioners
• Safety belts
• 3-point
• rear
• all seating positions
• LATCH system (Lower Anchors and Top tethers for CHildren)
• for child safety seats

• Vehicle
• EPA Classification: 4WD Sport Utility Vehicle
• Mileage
• Fuel Economy Est-Combined (MPG): 23
• EPA Fuel Economy Est - City (MPG): 20
• EPA Fuel Economy Est - Hwy (MPG): 29
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 525
• Maximum Alternator Capacity (amps): 120
• Cooling System
• Total Cooling System Capacity (qts): 8.9
• Weight Information
• Base Curb Weight (lbs): 3935
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 150
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 225
• Suspension
• Suspension Type - Front: Independent Strut-type
• Suspension Type - Rear: Independent Trailing arm
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.6 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 11.9 x 0.78
• Tires
• Front Tire Order Code: QYZ
• Rear Tire Order Code: QYZ
• Front Tire Size: P225/65R17
• Rear Tire Size: P225/65R17
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Variable power assist
• Steering Ratio (:1), Overall: 18.1
• Lock to Lock Turns (Steering): 3.46
• Turning Diameter - Curb to Curb (ft): 40.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 18.8
• Exterior Dimensions
• Wheelbase (in): 112.5
• Length, Overall (in): 187.8
• Width, Max w/o mirrors (in): 72.5
• Height, Overall (in): 66.3
• Track Width, Front (in): 62.5
• Track Width, Rear (in): 61.8
• Min Ground Clearance (in): 7.8
• Rear Door Opening Height (in): 28.8
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -

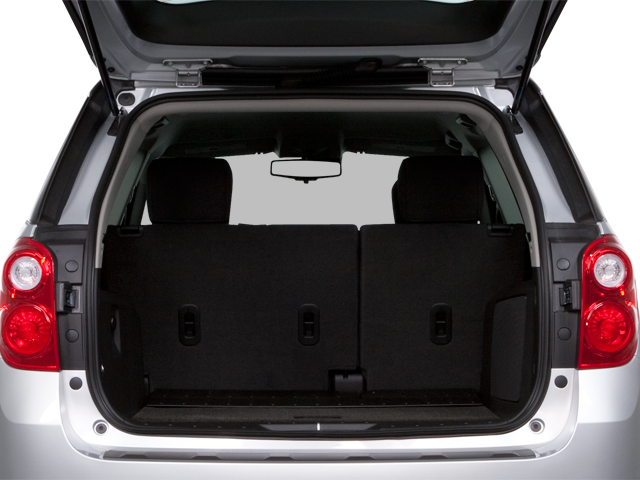

• Cargo Volume to Seat 1 (ft³): 63.7
• Cargo Volume to Seat 2 (ft³): 31.4
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 99.7
• Front Head Room (in): 40.9
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 55.8
• Front Hip Room (in): 51.1
• Second Head Room (in): 39.2
• Second Leg Room (in): 39.9
• Second Shoulder Room (in): 55.3
• Second Hip Room (in): 51.3
• Summary

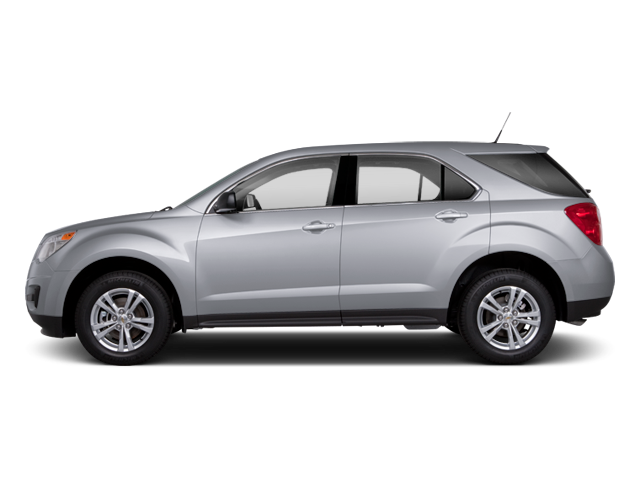

• Vehicle Name: Chevrolet Equinox
• Body Style: 4 Door
• Emissions
• EPA Greenhouse Gas Score: 6
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.1
